Route your app's LLM calls through the gateway

What you'll build: one OpenAI-compatible endpoint that fronts your provider. You'll register a credential and a model, verify it live in the Playground, then call it from code. Switching providers later becomes a config change, not a code change.

1. Add a provider credential

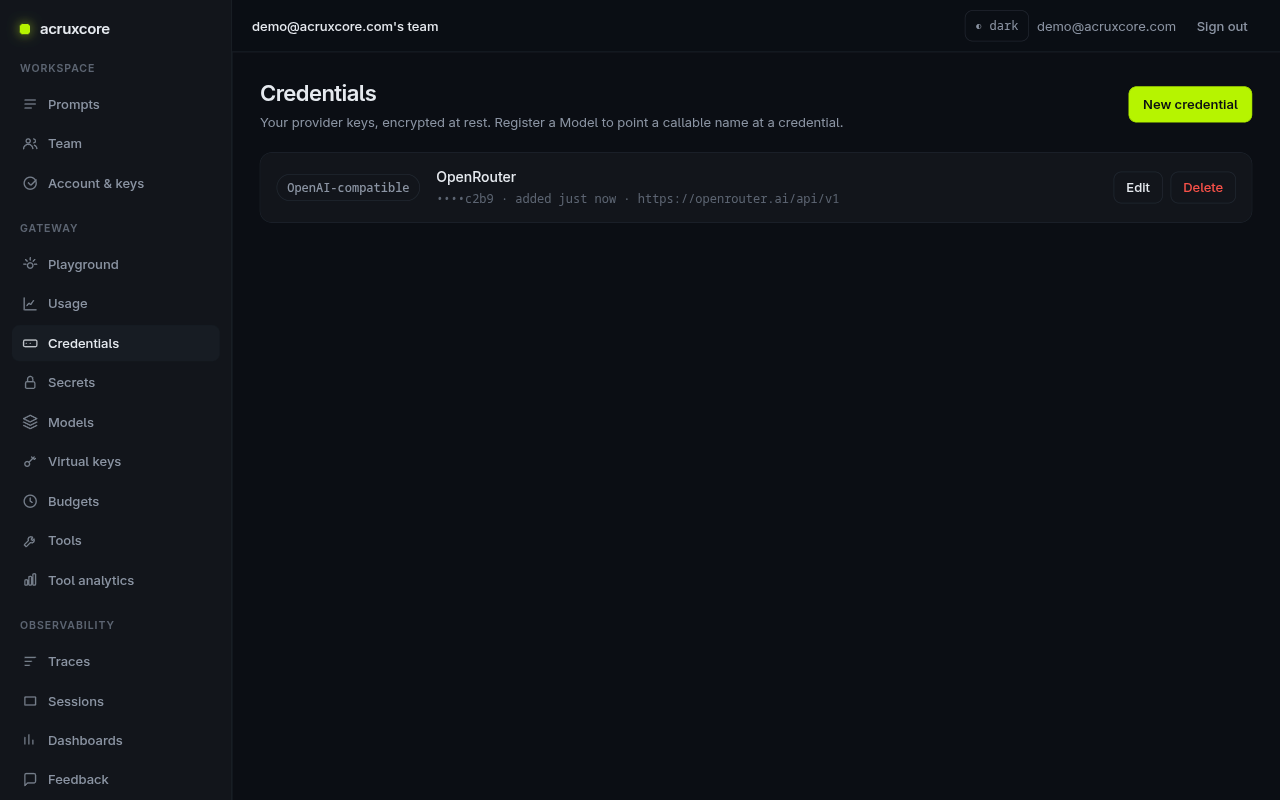

Go to Gateway → Credentials → New credential. AcruxCore is BYOK — you bring your own provider key and it's encrypted at rest (only the last four characters are ever shown again).

Pick a provider: openai, anthropic, gemini, or OpenAI-compatible. This guide uses OpenAI-compatible with OpenRouter, which needs a Base URL of https://openrouter.ai/api/v1.

2. Register a model

A model is a public name callers use as model. It points at a credential and an upstream model id — so you can rename or re-point the upstream without breaking callers.

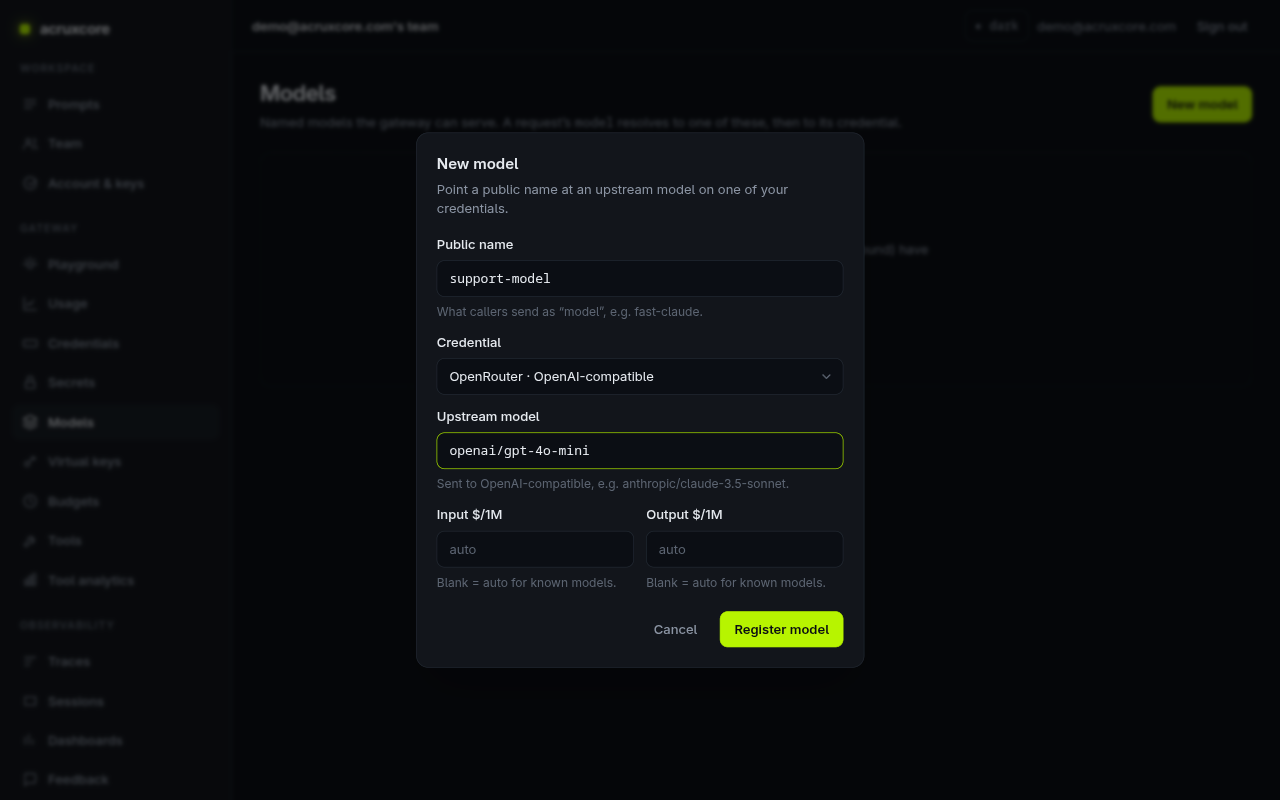

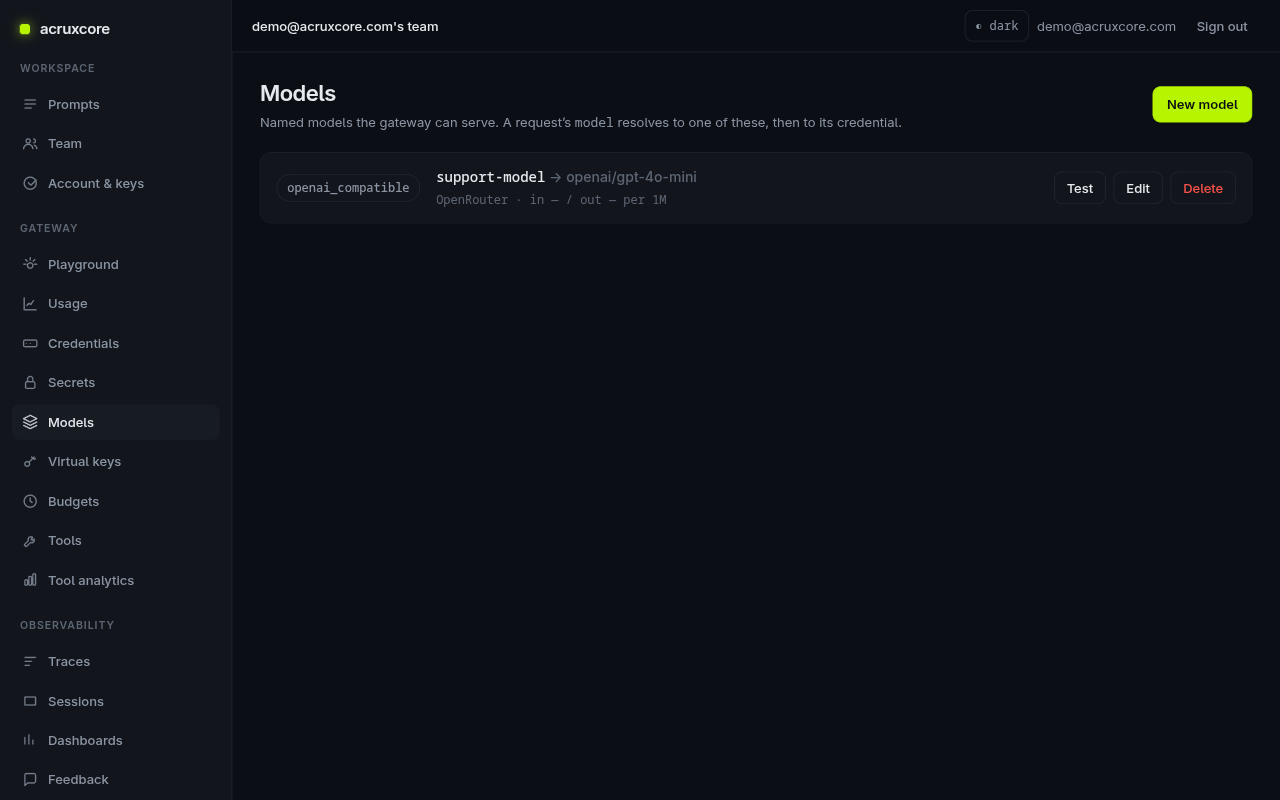

Gateway → Models → New model. Set Public name to support-model, choose your credential, and set Upstream model to openai/gpt-4o-mini.

3. Test it in the Playground

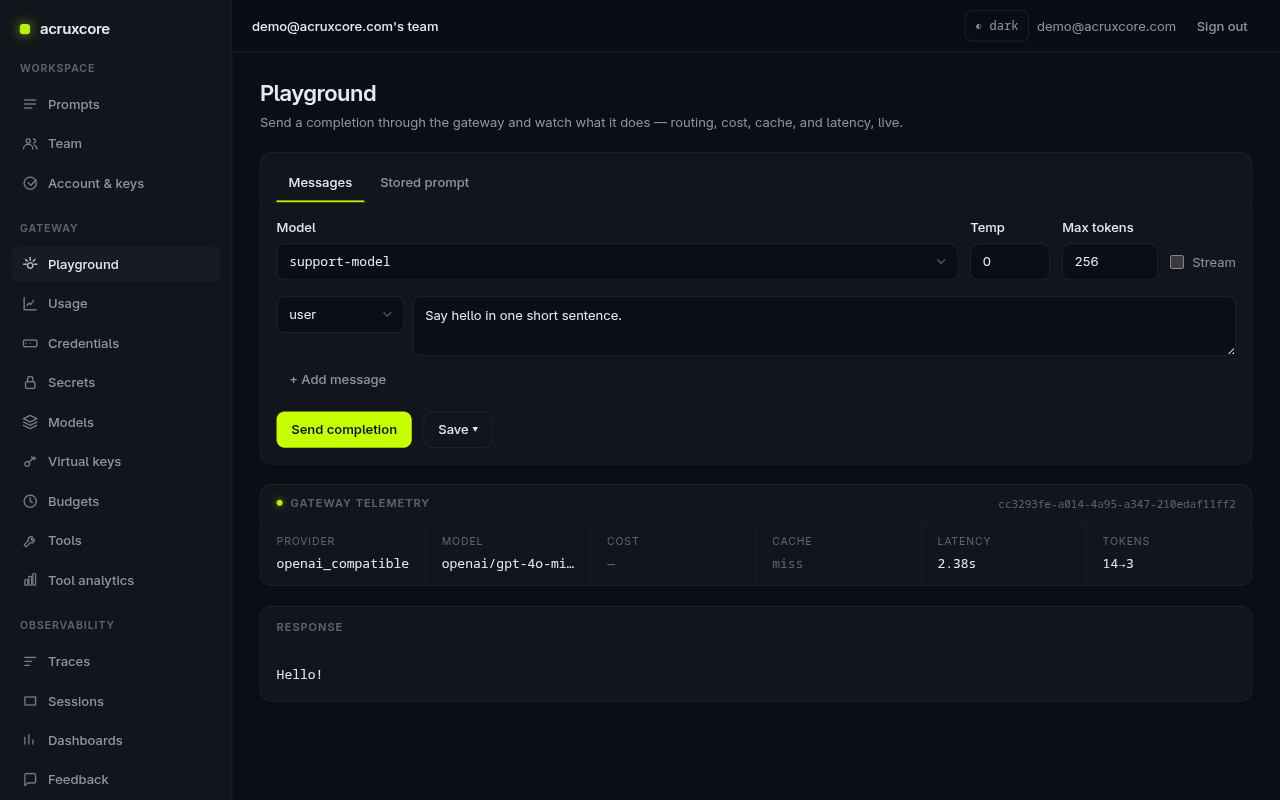

Gateway → Playground sends a real completion and shows live telemetry — provider, resolved upstream model, cache hit/miss, latency, and token counts. Pick support-model, type a message, and click Send completion.

The Gateway telemetry panel confirms the request hit openai/gpt-4o-mini through the openai_compatible provider, and links to the trace it recorded.

4. Call it from code

The endpoint is POST /gateway/chat/completions and it speaks the OpenAI chat-completions shape. Send model: "support-model" plus either raw messages or a prompt reference (see Version a prompt).

curl

curl -X POST "$ACRUXCORE_BASE_URL/gateway/chat/completions" \
  -H "Authorization: Bearer $ACRUXCORE_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "model": "support-model",
    "messages": [{"role":"user","content":"Say hi in three words."}],
    "max_tokens": 20
  }'

Node (SDK)

import AcruxCore from '@acruxcoreai/sdk';

const hub = new AcruxCore();

const { content } = await hub.gateway.chat({
  model: 'support-model',
  messages: [{ role: 'user', content: 'Say hi in three words.' }],
  maxTokens: 20,
});
console.log(content);

hub.gateway.chat() is a single request/response call — see chat, stream, and collect feedback with the SDK for streaming and for runToolLoop, the SDK's traced tool-calling loop.

Python (SDK)

from acruxcore import AcruxCore

hub = AcruxCore()

result = await hub.gateway.chat(
    "support-model",
    [{"role": "user", "content": "Say hi in three words."}],
    max_tokens=20,
)
print(result.content)

Python (openai)

import os
from openai import OpenAI

# Point the official OpenAI client at the AcruxCore gateway.
client = OpenAI(
    api_key=os.environ["ACRUXCORE_API_KEY"],
    base_url=os.environ["ACRUXCORE_BASE_URL"] + "/gateway",
)

resp = client.chat.completions.create(
    model="support-model",
    messages=[{"role": "user", "content": "Say hi in three words."}],
    max_tokens=20,
)
print(resp.choices[0].message.content)

Python (requests)

import os, requests

base, key = os.environ["ACRUXCORE_BASE_URL"], os.environ["ACRUXCORE_API_KEY"]
resp = requests.post(
    f"{base}/gateway/chat/completions",
    headers={"Authorization": f"Bearer {key}"},
    json={
        "model": "support-model",
        "messages": [{"role": "user", "content": "Say hi in three words."}],
        "max_tokens": 20,
    },
)
print(resp.json()["choices"][0]["message"]["content"])

Calling without a model name

If a prompt version has a bound default model, a stored-prompt call can omit model entirely and the gateway resolves it. Precedence: an explicit request model wins → else the version's bound model → else 400 model is required.

curl -X POST "$ACRUXCORE_BASE_URL/gateway/chat/completions" \
  -H "Authorization: Bearer $ACRUXCORE_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{"prompt":{"name":"support-reply","alias":"production","variables":{"company":"Acme","customer_message":"Where is my order?"}}}'

{"id":"gen-1785560034-9bNVIHYi8QdQ81ipOXfc","model":"openai/gpt-4o-mini","object":"chat.completion","created":1785560034,"choices":[{"index":0,"message":{"role":"assistant","content":"I'm happy to help! Could you please provide me with your order number or the email address associated with your order? This will allow me to look into it and give you the latest update."},"finish_reason":"stop"}],"usage":{"prompt_tokens":45,"completion_tokens":38,"total_tokens":83}}

This only works because support-reply's production version has a bound default model (support-model, set when committing that version) — a version with no bound model still needs an explicit model in the request.

What's next

• Every call here was recorded — go trace and inspect one.
• Cap spend with Budgets and share access with Virtual keys (see the API Reference).
• Give the model actions to take: build and attach a tool.
• Stream responses, run a traced tool-calling loop, and record feedback from Node: chat, stream, and collect feedback with the SDK.
• Wondering what routing through the gateway costs you: full-cycle latency across six LLM-ops platforms, measured against real OpenAI and re-run four times to check how stable the number is.
